Dynamics CRM 2016 overwhelms customers and consultants alike. There is no denying the fact that indeed, this has been a giant step forward be in terms of user experience or the rich set of functionalities, especially for our on-premise customers who have made the leap from CRM 2015 to CRM 2016.

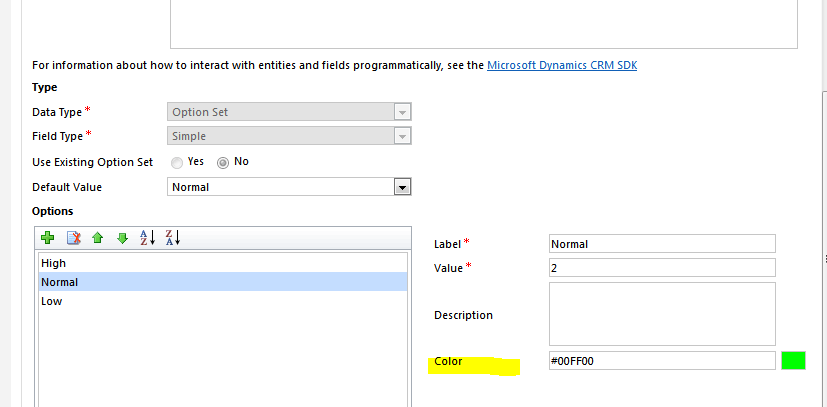

And among these big set of feature release, sometimes very subtle yet powerful changes gets overlooked. One of that is the availability of extra metadata attribute called ‘Color’ for an optionset field. Not sure how many of you noticed it, but CRM now comes with an additional option of specifying the color for each option item in the optionset.
So let’s see how this field can be used.
The first thing to notice here is that you can specify the color code for each of the option items in hexadecimal value. For example – I have taken here the priority optionset and added three different colors for the three option items

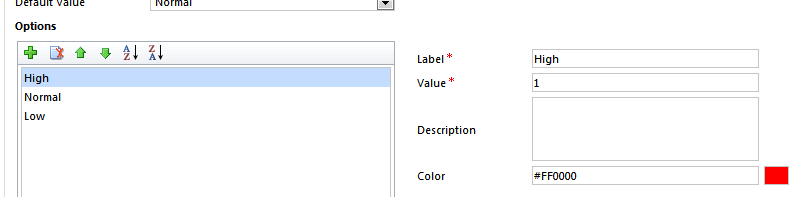

High – Red

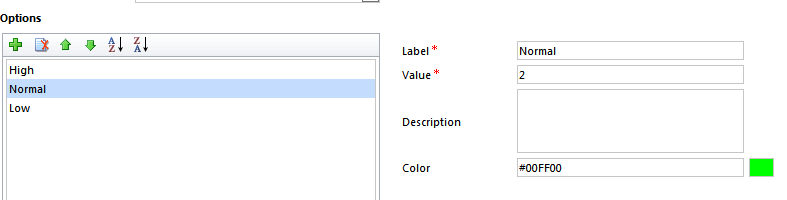

Normal – Green

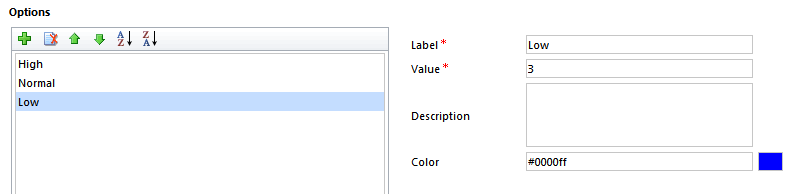

Low – Blue
I save and publish the customization changes. These colors will be actually used in the interactive service dashboards. If you are not aware of the interactive service hub for CRM 2016, you can view the MSDN Documentation for the same by following the below link.
I have customized the Dashboard for interactive service hub to show a bar chart of cases by priority. You can access the interactive service hub for your organization by typing in the url in the format
<organization url>/engagementhub.aspx

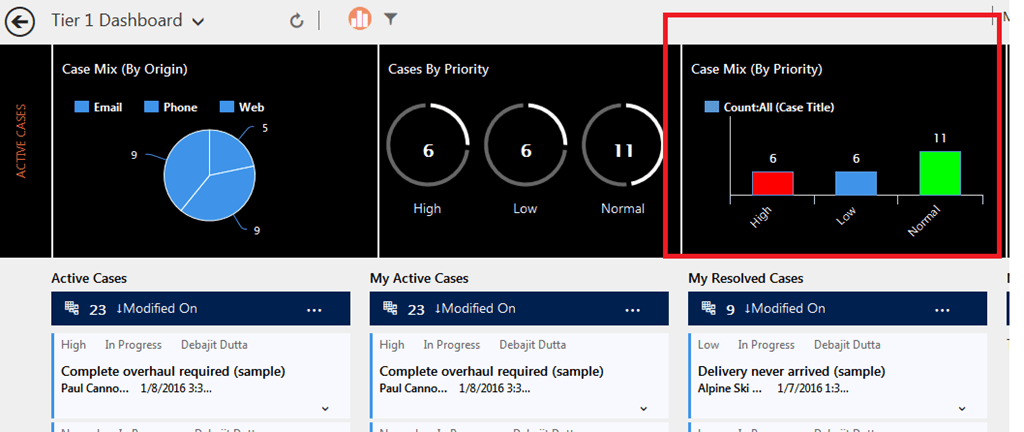

When I opened the engagement hub for my organization, I can see the chart displayed with the colors I specified for each of the High, Low and the medium values.
Isn’t it cool? Just thinking how can you use it more. Well if you have some external application which reads data from the CRM and shows some chart, you can probably read the optionset metadat, get the color code and render the chart with the same code in CRM.
Hope this helped!
Debajit Dutta
Business Solutions MVP
Discover more from Debajit's Power Apps & Dynamics 365 Blog
Subscribe to get the latest posts sent to your email.
Thanks for this. I looked at it and never found where is this color goes. so you have clarified.
I have a question. if you want to show this color in Cases for different priority, is there any solution to highlight the field based on Priority with respective color?
If I understand your requirement correctly, I think this is what you might be looking for.
https://xrmadvice.wordpress.com/2014/02/05/conditional-formatting-for-crm-2013-grids-using-actions/
Based on the color of the optionset, you can highlight the colour as suggested in the above.
The above solution worked in CRM 2013. Haven’t tried on CRM 2016 though.
-Debajit
HI Debajit its not working in crm 2016
Hi Swarnakanth,
Color codes for option sets works only for interactive service Dashboards and this feature is there for only CRM 2016.
Can you let me know if it is not working in Interactive Service Dashboards?
Regards
Debajit
After changing some option set colors, my graph on the ISH dashboard actually disappeared; the shapes are all black now! I can see my expected colors’ hex codes in the DOM, but they appear to get overridden by some other style on the page.
Hi Kyle,
Did you try to send me the behavior with the color codes so that I can try from my end as well and check if I am getting the same error. You can send it at my email: debajit.prod@gmail.com
